Telecentric Collimating Measuring Magnifier and Optical Comparator, 7x - Model ONS-0383

Telecentric Collimating Measuring Magnifier and Optical Comparator, 7x -  Model ONS-0383
Click to enlarge
Price: $325.00
Product ID : ONS-0383
Weight: 0.35 lbs

Full Product Description Below


7x Magnifier, ONS-0383 . . . . . . . . . . $325.00 each
7x Magnifier & Flashlight, ONS-0384 . .$365.00 each
OPS-0020 Reticle: ZC Inch/mm . . . . . .$24.50 each
OPS-0023 Reticle: ZC mm . . . . . . . . . $24.50 each
OPS-0030 Reticle: ZC Inch/mm-White .$48.50 each
OPS-0021 Reticle: Multi-Purpose . . . . .$24.50 each
OPS-0024 Reticle: L to R Inch . . . . . . .$24.50 each
OPS-0026 Reticle: Multi-Purpose . . . . .$24.50 each
*Private Label and Branding available

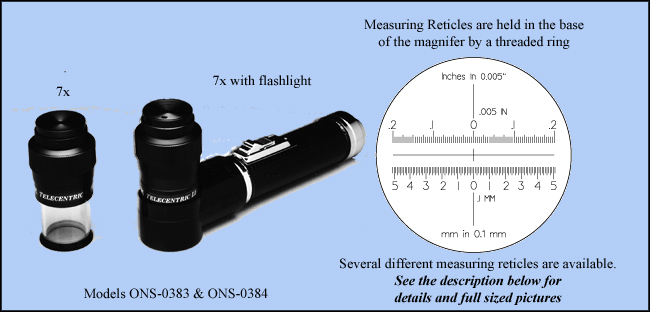

The optical system of this magnifier is 'telecentric' and differs from a conventional magnifier in that a small opening at the focal point of the lens system enables the length and width of not only flat objects but three dimensional ones such as spheres and cylinders to be measured without errors due to parallax.

This telecentric collimating magnifier is in effect a portable version of an expensive profile projector.

The 7x lens system is of adjustable focus and three different eyepiece openings may be indexed by the turn of a knurled ring. The three openings are 1mm (0.039") and 3mm(0.118") in diameter and a slot 0.5mm x 3.0mm (0.020" x 0.118"). The field of view is 20mm (0.787").

The interchangeable precision glass measuring reticles that are available for this magnifier provide for the accurate inspection and measurement of linear dimensions as small as 0.005" or 0.1mm.

When an object is viewed through the magnifier, dimensions may be measured quickly and accurately from the scale that is superimposed on the viewed object by the reticle at the base of the magnifier. Many different styles of reticles are available. For large size images of these reticles, click the link in the 'Reticle Specifications' shown below.

Reticle Specifications:

Reticles are available for measuring linear length in inches or millimeters, hole diameters, radius dimensions, angles, etc..

The reticles are manufactured from glass with the graduations on the outside surface which is in contact with the item being measured. This eliminates any inaccuracies due to parallax errors.

The glass reticles are extremely stable and have sharp and crisp black (or white in some cases) graduations which are accurate and easy to read. One reticle is available with "WHITE"' graduations which is especially useful for measuring dark surfaces such as photographic negatives, etc.. Reticles are secured to the base of the magnifier by a threaded knurled ring and are quick and easy to change.

The following reticles are available for this magnifier:

Click 'linked' model numbers below to view an oversize picture of each reticle.

OPS-0020 - Zero Centered Inch and metric scales. Inches to 0.005" on the top and mm to 0.1mm on the bottom.

OPS-0023 - Zero Centered Metric scale. mm to 0.1mm.

OPS-0030 - Same as OPS-0020 but with 'WHITE' graduations.

OPS-0021 - Zero Centered 0.1mm. Left to Right Inches to 0.005". 90 degree protractor, radius arcs & hole sizes.

OPS-0024 - Inch Scale Reading Left to Right to 0.005".

OPS-0026 - 0.005" & 0.1mm reading Left to Right.  Holes sizes, line lengths, 90 degree protractor & radius arcs.

General Magnifier Information:

Each magnifier incorporates a coated, color corrected achromatic multiple lens system which provides bright, crisp, clear, color corrected and distortion free viewing.

Easy and smooth focusing of the magnifier is made possible by a high quality helicoid system similar to that used on photographic lenses.

The clear base of the magnifiers admit light from all directions to illuminate the viewed object and a flashlight unit is available for low light areas.

The overall size of the magnifier is 35mm (1.378") in diameter and 85mm (3.346") high.

The ideal unit for use in those demanding applications such as film stripping, temperature measurement, meter readings, etc. where errors due to parallax must be eliminated.

Two units are available, a regular magnifier and the same magnifier incorporated into a portable flashlight. On the flashlight magnifier, the actual magnifier is identical to the regular magnifier and easily removes from the flashlight unit for independent use.

The flashlight magnifier requires two 'C' cell batteries (not supplied) and replacement bulbs are readily available.

All units are supplied with a protective lens cap and the regular magnifier includes a leatherette storage and carrying case.

Order the magnifiers and the exact reticles you require.

For large size images of the reticles, click the links in 'Reticle Specifications' shown above.

Historical Model #s: ONS-0383, ONS-0383A, ONS-0384, ONS-0384A, OPS-0020, OPS-0020A, OPS-0024, OPS-0024A, OPS-0023, OPS-0023A, OPS-0021, OPS-0021A, OPS-0026, OPS-0026A, OPS-0030, OPS-0030A
