Extra Long Stainless Steel Rulers & Machine Scales, Inch & Metric 1/32", cm, mm - Bottom to Top, 0 to 192" - Model 3005A
Purchase
Description
A range of more unusual stainless steel rulers and scales available from stock with no minimum order quantities. Long scale lengths of up to 192" (4877mm) are made possible by supplying multiple 4’ (1219mm) lengths which are flush ended, consecutively numbered and correctly registered so they can be mounted to form a continuous long scale length.
The individual scale lengths may also be cut at different lengths to give any specific length required.
These scales are ideal for mounting on machinery, tanks, tables, shear beds, etc.. The ideal solution where long scales or rulers are required.
Each individual 4’ (1219mm) section is 1 1/8” (28.6mm) wide and 0.030” (0.8mm) thick.

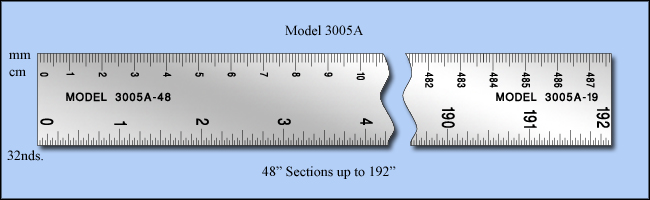

Vertical Reading Scales – 0-192” (4877mm).
These scales are numbered and graduated to read vertically and read from bottom to top. The same scales reading from top to bottom are available - see GEI Model 3007A.
The scales are graduated in inches to 1/32” on the right edge and mm numbered in centimeters on the left edge. For applications where a zero centered scale is required, bottom to top and top to bottom reading scales may be butted together at the zero flush end point enabling up to a 28’ (8534mm) continuous scale to be mounted. Use this scale, GEI Model 3005A and GEI Model 3007A.
Any single or all individual sections may be ordered.
All graduations and markings are etched and black filled.
Historical Model #s: 3005, 3005A, 3005A-48, 3005A-48A, 3005A-96, 3005A-96A, 3005A-14, 3005A-14A, 3005A-19, 3005A-19A
