General Purpose Stainless Steel Ruler, Inch 1/16", 1/32", 1/64", 1/100" - 24" Length - Model 1060A-24
; "General Purpose Stainless Steel Ruler, Inch 1/16\", 1/32\", 1/64\", 1/100\" - 24\" Length - Model 1060A-24")
Click to enlarge
|
Purchase
Description

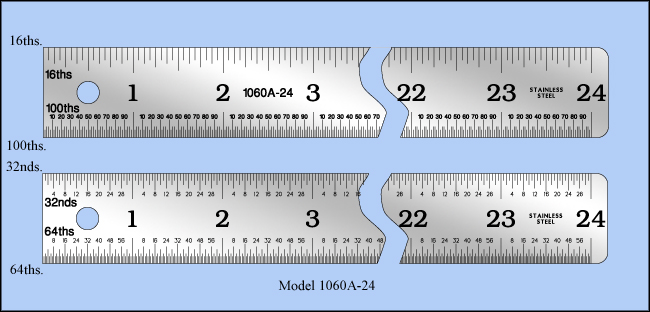

A Two sided ruler featuring inch scales on all four edges with smallest graduations of 1/16", 1/32”, 1/64” and 1/100”. The 1/100” scale is actually 1/50” numbered in 1/100” for readability. These rulers are flush ended – zero starts at the end of the ruler enabling measurements to be taken by butting ruler up to the edge of the object being measured.
The ruler to use for small fractional and decimal measurements.
The right end of the ruler has rounded corners for safety and a 1/4” (6.35mm) diameter hang hole at the left end. This ruler is 1” (25.4mm) wide and 0.030” (0.8mm) thick.
This ruler is available in only a 24” length.
All graduations and markings are etched and black filled.
Historical Model #s: 1060, 1060A, 1060R, 1060A-24, 1060A-24A, 1060R-24
