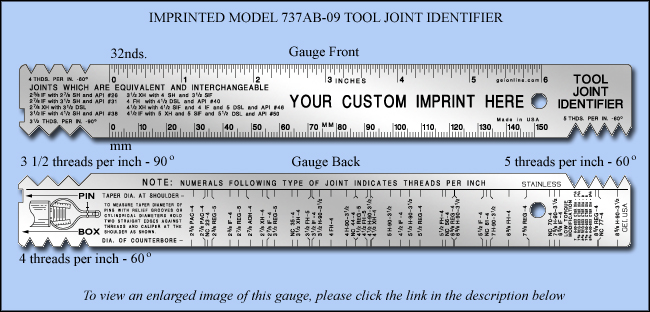

Custom Promotional and Imprinted Stainless Steel Tool Joint Identifiers - Model 737AB-09
; "Custom Promotional and Imprinted Stainless Steel Tool Joint Identifiers - Model 737AB-09")
Click to enlarge
|
Purchase
Description
For an enlarged image, please click here.
The finest quality precision etched stainless steel Tool Joint Identifiers available with your custom imprint and or logo which is etched on to the gauges at the same time that the gauges are manufactured.
These Tool Joint Identifiers are a combination gauge, ruler and identifier for use wherever drill strings are employed in well drilling operations.
Use this tool to assist in identifying drill stem connections on which the identification markings etc. have worn off or are illegible.
The end profiles on this tool joint identifier will help you determine the number of threads per inch in the pin or box. Use calipers to measure the diameter at base on the pin, transfer this measurement onto the gauge and quickly determine the type of joint. The numerals following the type of joint on this gauge indicates the number of threads per inch.
To identify the type of box, hold this gauge to the counterbore opening and read the corresponding graduation on the tool joint identifier. Be sure the corresponding threads per inch are also correct.
All graphics and markings including your imprint and logo are permanently etched and black filled at the time the Tool Joint Identifiers are manufactured. This process produces a high quality long lasting gauge and custom imprint on which the graphics, markings and graduations will not rub off.
These high quality gauges are long lasting items which will be appreciated and will keep your name in front of your customers and sales prospects for many years.
These same Tool Joint Identifiers are available without an imprint and usually ship immediately from stock. Please 'Click Here' to view the standard Tool Joint Identifiers.
Gauge Size and Imprint Area
Overall gauge size is 8.500" x 1.000" x 0.020". (215.9mm x 25.4mm x 0.51mm).
Maximum imprint size is 3.000" x 0.400". (76.2mm x 10.16mm).
Hang hole diameter is 0.218" (5.53mm).
Copy/Artwork/Graphics for Your Custom Imprint
At no additional charge, we will produce your custom imprint from standard type of your choice. Simply let us know what you require on the gauge/ruler, we will produce the artwork and supply to you a paper proof showing your custom imprint on the gauge/ruler for approval or changes before any items are manufactured.
Alternatively, we can work from many different types of electronic and paper media, for those special items such as your logo. Please contact us for acceptable formats.
Order Information and Specifications
All prices shown include gauges/rulers, artwork, etc. There are no additional set up or die charges.
Due to our high quality standards, we reserve the right to ship and bill plus or minus 15% of the quantity ordered.
All graduations and markings including your imprint are etched and black filled.
Click here to view 'plain' Tool Joint Identifiers available as stock items in any quantity.
* Other scales and charts not shown available upon request.
