Stainless Steel Business Form Design and Layout Ruler, Inch & Metric 1/6", 1/10", 1/12", 1/20", 1/32", mm - 16" Length - Model 1090A-16
; "Stainless Steel Business Form Design and Layout Ruler, Inch & Metric 1/6\", 1/10\", 1/12\", 1/20\", 1/32\", mm - 16\" Length - Model 1090A-16")
Click to enlarge
|
Purchase
Description

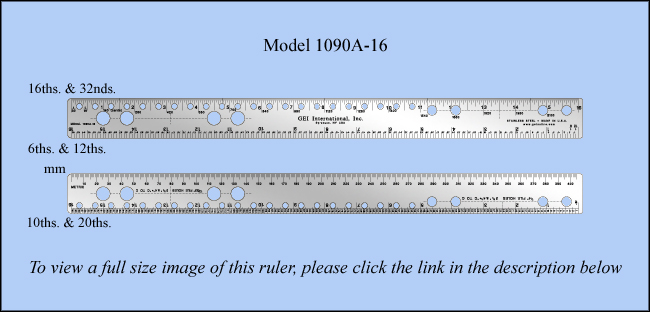

For a full size image, please click here.
A versatile ruler for Business Form Designers, System Analysts, or any Professional in the Business Forms or Graphic Art industries.
A multi purpose ruler with graduated scales on all four edges. The ruler features custom punching for File Holes, Line Holes, etc.. The full specifications of this ruler are listed below:
Measuring Scales:
1/32" scale with graduations at 1/16", 1/8", 1/4" and 1/2".
1/6" and 1/12" scale reading horizontally and numbered every 1/6" from 0 to 96 (also every inch, 1 to 16).
1/10" scale reading vertically and numbered every 1/10" from 0 to 160 (also every inch from 1 to 16).
Metric scale numbered every 10mm with a smallest graduation of 1mm.
Tab card Volume Scale on the 1/16" & 1/32" edge calibrated at 140 cards per inch and reading from 0 to 2100 (numbered every 1"/140 Cards).
Hole Punching:
Continuous Line-Hole punching, matches the edge of sprocket fed continuous paper. Used to indicate the position of forms and pin feed holes. 22 holes on 1/2" spacing.
File-Hole punching to indicate the correct position of: 3/8"(13/32") at 2 3/4" & 4 1/4" center to center spacing.
File-Hole punching to indicate the correct position of: 1/4" at 2 3/4" & 4 1/4" center to center spacing. The overall length of the ruler is 16".
The ruler is manufactured from 0.030" (0.8mm) thick stainless steel and the corners are rounded for safety. The ruler 1.25" (31.75mm) wide.
This ruler may also be imprinted, please 'Click Here' to view full details.
This ruler has been supplied to the U.S. Government (GSA), NSN 7510-00-173-4897. Description: Ruler, Tab Metal.
All graduations and markings are etched and black filled.
Historical Model #s: 1090, 1090A, 1090A-16, 1090A-16A, 6016, 6016DM, 6016-DM, WO6016DM, WOODWARD
