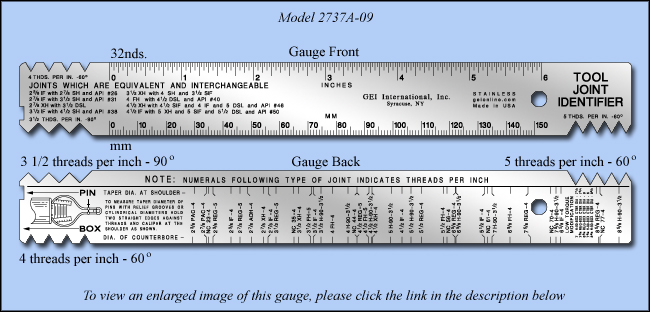

Stainless Steel Tool Joint Identifier - Model 2737A-09
; "Stainless Steel Tool Joint Identifier - Model 2737A-09")
Click to enlarge
|
Purchase
Description
For an enlarged image, please click here.
The finest quality precision etched stainless steel Tool Joint Identifier. All graphics and markings are permanently etched and black filled to produce a high quality long lasting gauge in which the graphics and graduations will not rub off.
A handy tool, gauge, ruler and identifier for use wherever drill strings are employed in well drilling operations. Use this tool to assist in identifying drill stem connections on which the identification markings etc. have worn off or are illegible. The end profiles on this tool joint identifier will help you determine the number of threads per inch in the pin or box. Use calipers to measure the diameter at base on the pin, transfer this measurement onto the gauge and quickly determine the type of joint. The numerals following the type of joint on this gauge indicates the number of threads per inch. To identify the type of box, hold this gauge to the counterbore opening and read the corresponding graduation on the tool joint identifier. Be sure the corresponding threads per inch are also correct.
Gauge Dimensions:
Overall gauge size is 8.500” (215.9mm) x 1.000” (25.4mm) x 0.020” (0.508mm).
Hang hole diameter: 0.218” (5.53mm)
Click here for custom imprinted Tool Joint Identifiers, quantities start at 100 pieces.
Historical Model #s: 2737, 2737A, 2737A-09, 2737A-09A, TOOLJOINT IDENTIFIER
