Custom Promotional and Imprinted Stainless Steel Wet Film Thickness Mil Gauges, 4 Mils To 40 Mils - Model 735atoc

The finest quality precision stainless Steel notched 'Wet Film Thickness' (WFT) and 'MIL' Gauges custom imprinted with your name, logo, sales message, etc.. Your custom imprint is permanently etched onto the front of the gauge and black filled to produce a high quality long lasting imprint that will not rub off. All graphics and markings including your imprint are etched at the time the gauge is manufactured.

The perfect gauges for promotional use including exhibitions, handouts, premiums, advertising, gifts and many more. These high quality precision Wet Film Thickness Mil Gauges are long lasting items, which will be appreciated and will keep your name in front of your customers and sales prospects.

Gauge Size and Imprint Area

Overall Gauge size is 2.250" x 1.070" x 0.030". (57.15mm x 27.18mm x 0.76mm).

Maximum imprint size is 1.375" x 0.750". (34.93mm x 19.05mm).

Copy/Artwork/Graphics For Your Custom Imprint

At no additional charge, we will produce your custom imprint from standard type of your choice. Simply let us know what you require on the gauge, we will produce the artwork and supply to you a paper proof showing your custom imprint on the gauge for approval or changes before any items are manufactured.

Alternatively, we can work from many different types of electronic and paper media, for those special items such as your logo. Please contact us for acceptable formats.

Order Information and Specifications

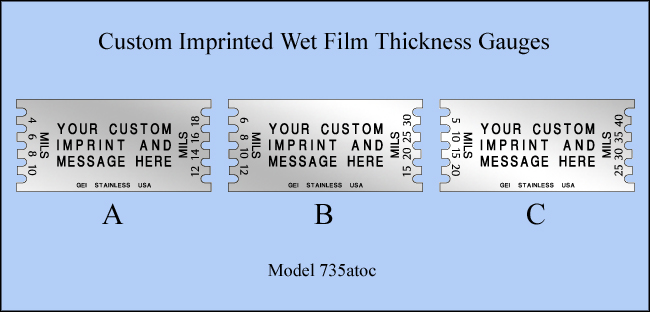

When ordering specify which gauge size range you require (Type A, B or C) and the quantity you wish to order. Three gauge ranges are available:

4, 6, 8, & 10 MILS on first edge, 12, 14, 16 & 18 MILS on second edge - Type A

6, 8, 10, & 12 MILS on first edge, 15, 20, 25 & 30 MILS on second edge - Type B

5, 10, 15 & 20 MILS on first edge, 25, 30, 35 & 40 MILS on second edge - Type C

Other notch - mil sizes available on request. Please contact GEI with your requirements.

All prices shown include gauges, artwork, set up, etc. There are no additional set up or die charges.

Due to our high quality standards, we reserve the right to ship and bill plus or minus 15% of the quantity ordered.

These gauges meet the requirements of the following International Standards:

ISO 2808-7B, ASTM D4414-A, BS 3900-C5 Method 7B, NF T30-125

VIEW FULL INSTRUCTIONS, SPECIFICATIONS, DRAWINGS, ETC..

VIEW FORMULAS FOR WET & DRY FILM THICKNESS, ETC..

ALSO AVAILABLE AS PLAIN STOCK GAUGES.

ALSO AVAILABLE CERTIFIED TRACEABLE TO NIST.

All graphics, legends and markings are etched and black filled.

Historical Model #s: 735, 735A, 735B, 735C, 735A0, 735B0, 735C0, 735A0-18, 735B0-30, 735C0-40
