Custom Promotional and Imprinted Pipe Thread and Fitting Size Stainless Steel Rulers and Gauges, NPT, Drill and Tap Sizes 1/16" to 3 1/2" - 6" Length - Model 736atof-06

Custom Promotional and Imprinted Pipe Thread and Fitting Size Stainless Steel Rulers and Gauges, NPT, Drill and Tap Sizes 1/16" to 3 1/2" - 6" Length - Model 736atof-06
Click to enlarge
Price: $7.91
Product ID : 736atof-06
Weight: 0.25 lbs

Full Product Description Below


100 ...... $7.91 each
250 ...... $5.35 each
500 ...... $4.25 each
750 ...... $3.91 each
1,000 .... $3.86 each
2,500 .... $3.67 each
5,000 .... $3.59 each
*Private Label and Branding available

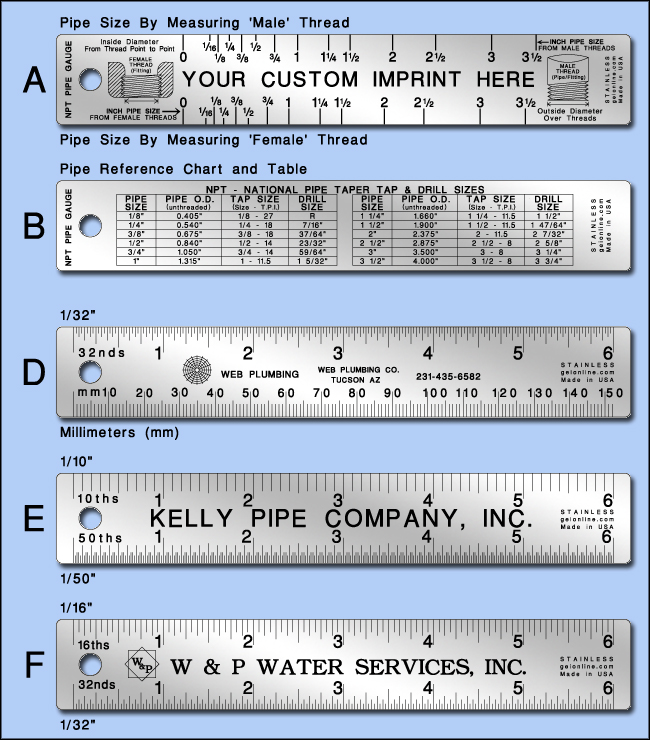

A range of the highest quality precision etched stainless steel gauges and rulers. Item 'A' shown above is a gauge specifically designed to quickly and easily determine the correct size of an NPT ( National Pipe Taper ) pipe or fitting. Item 'B' shown above is a reference chart and table of pipe sizes, 'Drill and Tap' sizes, etc.

The item 'A' gauge shown above is available CUSTOM IMPRINTED with your name, sales message, logo, etc. The back of the gauge may be left blank or feature either the reference chart shown as item 'B' above or one of the other regular measuring rulers shown above as items 'D', 'E' and 'F'.

Pipe sizes can be confusing even for the experienced user. Pipe size is not the actual outside or inside diameter of the pipe but is the industry accepted designation. For example, a 3/4" pipe size has an actual outside diameter of 1.05".

This gauge ruler incorporates two measuring scales which are correctly calibrated to be used to measure the actual pipe or fitting and the pipe size may be read directly from the gauge. One measuring scale is used to measure the outside diameter of a male NPT thread on a pipe or fitting and the other is used to measure the internal diameter of a female NPT thread on a fitting. Pipe and Fitting sizes from 1/16" to 3 1/2" may be measured.

The use of this gauge ruler eliminates the guesswork in determining pipe and fitting sizes and can eliminate costly errors due to sizing mistakes. Ideal for use in all areas where pipe or fittings are used including maintenance, plumbing, inventory, specifying, construction, purchasing, etc..

The reference chart and table shown as item 'B' above lists the actual industry designated outside diameters of pipes for specific sizes and the appropriate ' Drill and Tap Sizes' for each pipe size. Number of threads per inch (TPI) is also listed. Included in the reference chart are pipe sizes from 1/8" to 3 1/2".

These gauges and rulers are a “must have" item for anyone who uses pipe.

Your custom imprint is permanently etched onto the gauge/ruler and black filled to produce a high quality long lasting imprint which will not rub off. All graphics and markings including your imprint are etched at the time the guage/ruler is manufactured.

The gauges and rulers are available one or two sided with the same or different fronts and backs. Select the front and back you require from the selection shown above. Single sided gauges and rulers are also available; select only the one side you require. Your custom imprint is permanently etched on both sides of a two-sided gauge/ruler and the imprints may be different on each side. Please note that item 'B', the reference chart as shown above may not be imprinted due to size limitations.

Mix and match the front and back you require from those shown above to produce a gauge and ruler perfectly matched for your needs.

These stainless steel gauges and rulers have rounded safety corners and a convenient 1/4" (6.35mm) diameter hang hole as standard.

These high quality stainless steel gauges and rulers will provide a lifetime of use and are the perfect items for a wide range of promotional uses including exhibitions, handouts, premiums, advertising, gifts, and many more. Keep your name and sales message in front of your customers and sales prospects with these stainless steel gauges/rulers. These are practical items which will be appreciated and provide years of use.

We also manufacture a comprehensive range of stainless steel measuring rulers which are available as imprinted or regular items, 'Click Here' for further information.

Gauge/Ruler Size and Imprint Area- 6" Long

Thickness: 0.030" (0.76mm).
Width: 1" (25.4mm).
Maximum Imprint Area: 3.75" (95.25mm) x 0.3" (7.62mm).

Copy/Artwork/Graphics for Your Custom Imprint

At no additional charge, we will produce your custom imprint from standard type of your choice. Simply let us know what you require on the ruler, we will produce the artwork and supply to you a paper proof showing your custom imprint on the ruler for approval or changes before any items are manufactured.

Alternatively, we can work from many different types of electronic and paper media, for those special items such as your logo. Please contact us for acceptable formats.

Order Information and Specifications

All prices shown include gauges/rulers, artwork, etc. There are no additional set up or die charges.

Due to our high quality standards, we reserve the right to ship and bill plus or minus 15% of the quantity ordered.

This item is available without an imprint as a stock item in any quantity, click here to view details.

All graduations and markings including your imprint are etched and black filled.

* Other scales and charts not shown available upon request.
** Non-skid cork backing available upon request. All graduations and markings are etched and black filled.
