Center Finding and Zero Centered Stainless Steel Rulers With Non Skid Cork Backing, Inch & Metric 1/16", mm - 12", 15", 18", 24" & 36" Lengths - Model 200ZC
; "Center Finding and Zero Centered Stainless Steel Rulers With Non Skid Cork Backing, Inch & Metric 1/16\", mm - 12\", 15\", 18\", 24\" & 36\" Lengths - Model 200ZC")
Click to enlarge
|
Purchase
Description
Easily find the center of a workpiece with these rulers that have special zero centered measuring scales. Simply position the ruler so that you have the same reading on both the left and right sides of the workpiece. The center of the workpiece will be located at the zero mark on the ruler.
An excellent tool for woodworking, carpentry, graphic arts, crafts, metal working and any other application in which it is necessary to find the center of an item.
These rulers are single sided with a 'non skid' cork back . The front features 'zero centered' inch and metric scales with the smallest graduations of 1/16" and mm. The back of the rulers features a cork backing to prevent skidding and slippage. The cork back also raises the edge of the ruler from the work surface which enable inked lines to be drawn without smudging.

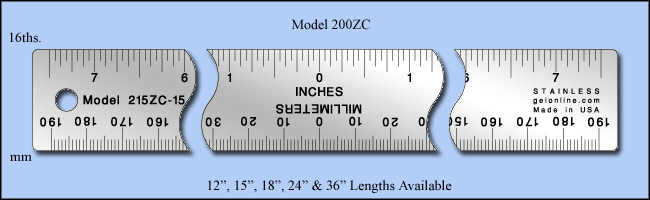

Please note from the picture, the scales on the top and bottom edges of these rulers are reversed so that whichever scale is used, it always is on the top edge and reads correctly.
The ends of the rulers have rounded corners for safety and a 1/4” diameter hang hole at one end. The rulers are 1.125" (28.6mm) wide. Stainless Steel thickness is 0.020” (0.508mm), overall thickness with the cork backing is 0.055" (1.397mm). These rulers are available in 12", 15", 18", 24” and 36" lengths.
These are the overall lengths, the 15" length reads from 0 to 7 1/2" to the left of zero and from 0 to 7 1/2" to the right of zero.
All graduations and markings are etched and black filled.
Historical Model #s: 200ZC, 212, 212ZC, 212ZC-12, 212ZC-12A, 215, 215ZC, 215ZC-15, 215ZC-15A, 218, 218ZC, 218ZC-18, 218ZC-18A, 224, 224ZC, 224ZC-24, 224ZC-24A, 236, 236ZC, 236ZC-36, 236ZC-36A, STAZPUT.
