General Purpose Stainless Steel Ruler, Inch & Metric 1/16", 1/32", mm - Meter Stick 1m Length - Model 0339A-10
; "General Purpose Stainless Steel Ruler, Inch & Metric 1/16\", 1/32\", mm - Meter Stick 1m Length - Model 0339A-10")
Click to enlarge
|
Purchase
Description

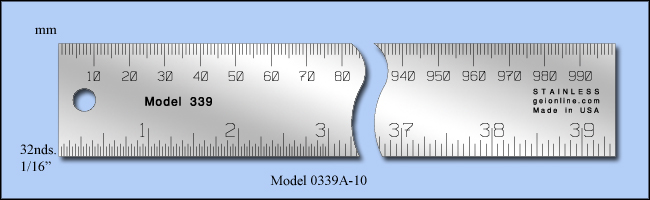

A single sided 'Meter Stick' ruler featuring a metric scale in mm numbered every 10mm on the top edge and an inch scale with a smallest graduation of 1/16" (1/32" for the first 3") on the bottom edge. This ruler is flush ended – zero starts at the end of the ruler enabling measurements to be taken by butting ruler up to the edge of the object being measured.
The right end of the ruler has square corners. There is a 1/4” (6.35mm) diameter hang hole at the left end. This ruler is 1 1/4” (31.75mm) wide and 0.030” (0.8mm) thick.
This ruler is available in only a 1000mm (1 meter) length.
All graduations and markings are etched and black filled.
Historical Model #s: 339, 0339R-10, 0339A-10, 0339A-10A
