Center Finding and Zero Centered Stainless Steel Rulers, Inch & Metric 1/16", mm - 18", 24" & 36" Lengths - Model 1034A
; "Center Finding and Zero Centered Stainless Steel Rulers, Inch & Metric 1/16\", mm - 18\", 24\" & 36\" Lengths - Model 1034A")
Click to enlarge
|
Purchase
Description
Easily find the center of a workpiece with these rulers that have special zero centered measuring scales. Simply position the ruler so that you have the same reading on both the left and right sides of the workpiece. The center of the workpiece will be located at the zero mark on the ruler.
An excellent tool for woodworking, carpentry, graphic arts, crafts, metal working and any other application in which it is necessary to find the center of an item.

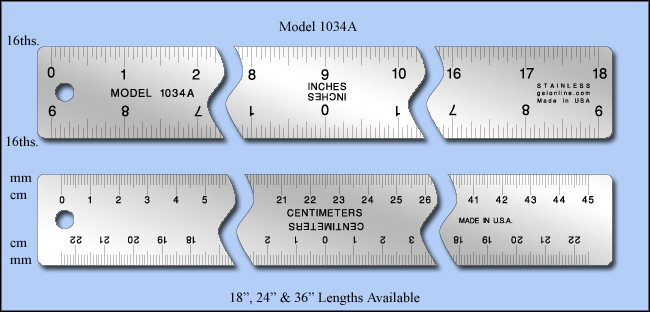

A two sided ruler featuring inch scales to 1/16" on the front. One edge is zero centered for use as a center finder and the other for use as a regular measuring scale which reads from left to right. The back of the ruler features metric scales in cm and mm. One edge is zero centered for use as a center-finder and the other for use as a regular measuring scale which reads from left to right.
1 1/4” (31.8mm) wide and 0.030” (0.8mm) thick with rounded safety corners and a 1/4” hang hole at one end.
Available in 18”, 24”, and 36” overall lengths. The 36” length reads from 0”-18” to the left and 0”-18” to the right. Select the reading you require to the left or right by dividing the overall length by two.
All graduations and markings are etched and black filled.
Historical Model #s: 1034, 1034A, 1034R, 1034A-18,1034A-18A, 1034R-18, 1034R-18A, 1034A-24A, 1034R-24, 1034R-24A, 1034A-36, 1034A-36A, 1034R-36, 1034R-36A
